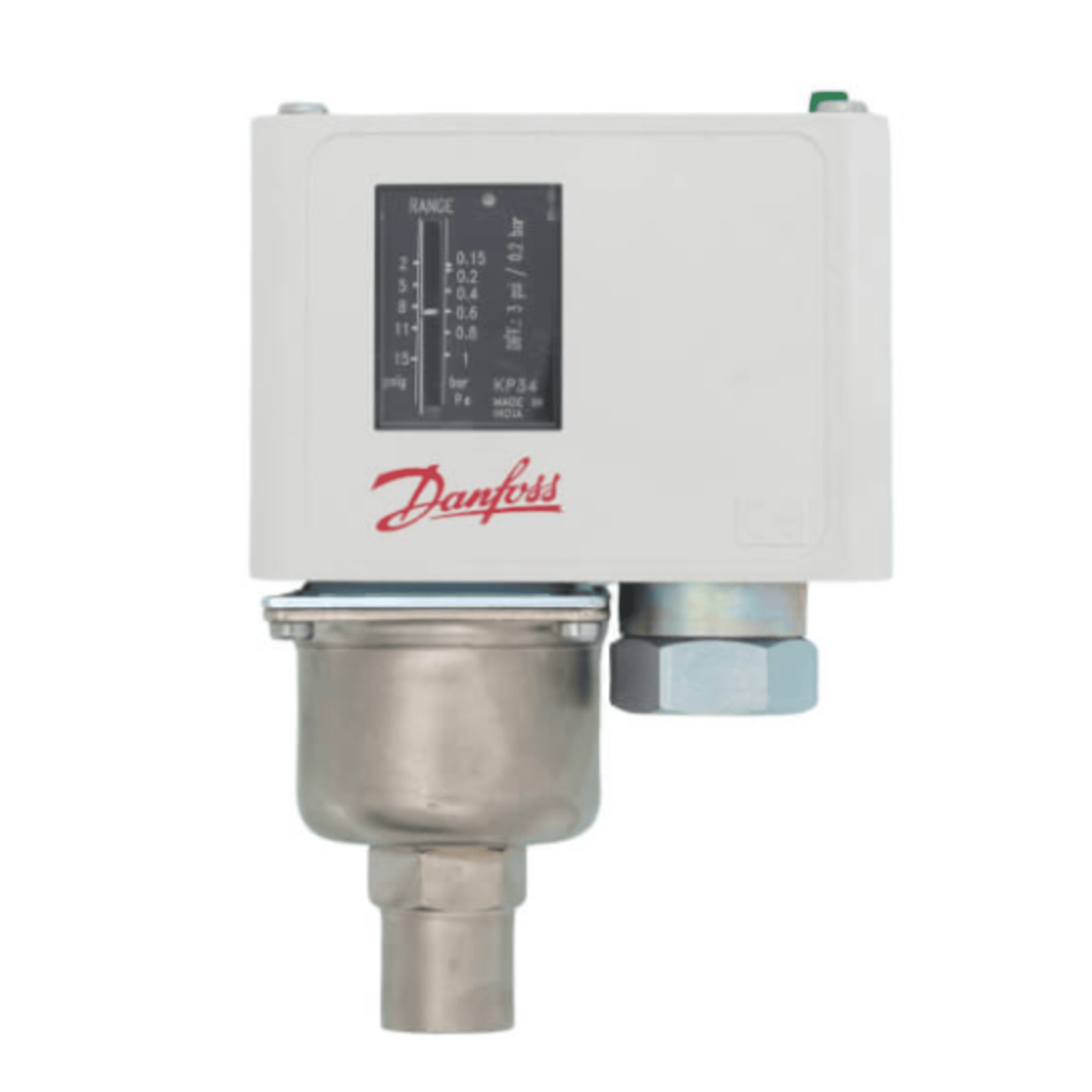

Danfoss - 060-214891 - KP-34 Manual Reset Pressure Switch

Product Details

Danfoss KP switches are used for regulating, monitoring and alarm systems in the industry. They provide automatic limit protection or manual reset limit protection for pressure systems. Can be used with steam, air, gaseous and liquid media. The pressure switches are fitted with single-pole changeover switch (SPDT). The position of the switch depends on the setting of the pressure switch and the pressure in the connector.

Features:
Wide regulating range
Small dimensions
Space-saving, easy to install in panels
Shock and impact resistant
Ultra-short bounce time
Limits wear to an absolute minimum and increases reliability
Snap action electrical contacts minimize chatter, bounce, and wear, and ensure long term electrical and mechanical reliability
Electrical connection from front of the unit. Makes rack mounting easier and also saves space
Suitable for alternating current and direct current
Screwed wiring, makes rewiring easy
Manual trip allows electrical function test without tools
Versions with automatic and manual reset available

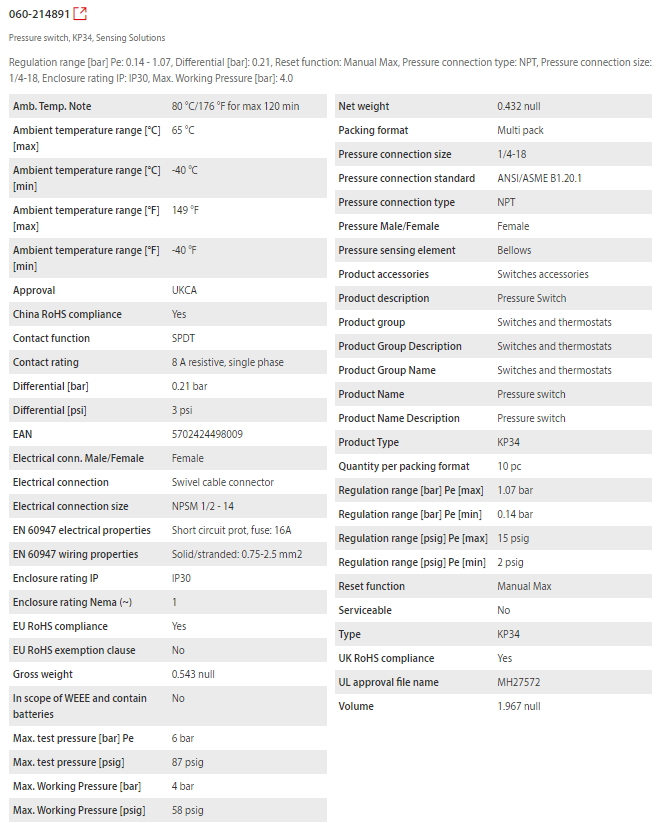

Specifications:
Ambient temperature: -40 – 150 °F (175 °F for short period of time)
Media temperature: -40 – 212 °F
Sensor material: Tinned copper Cu/Sn5
Parts in contact with bellows: stainless steel
Parts in contact with pressure connection: free-cutting steel, nickel plated
Wire dimension: 12 AWG max.
Contact system: SPST (close on temp. rise), SPDT, contact material AgCdO
Contact load: Alternating current FLA: 0.5 ~ 16 A/120 V AC, 0.5 ~ 8 A/240 V AC
Contact load: Alternating current LRA: 96 A/120 V AC, 48 A/240 V AC
Contact load: Direct current: 240 V DC: 12W pilot duty
Enclosure: NEMA ~1 (when mounted on a flat surface with all unused holes covered)
Cable entry: Integral 1/2" female NPSM swivel cable connector, allows direct attachenments of 1/2" male pipe thread connector
